Standard Radiator Cooled

NEXTGen's line of Industrial Radiator Cooled Gen-Sets are some of the most rugged, fuel efficient and quiet machines on the market today.

Kubota Specifications (PDF)

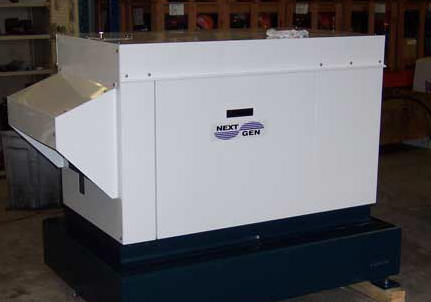

Example of custom unit with enclosure and fuel tank

5-40KW

NEXT Generations line of Industrial Radiator Cooled Gen-Sets are some of the most rugged, fuel efficient and quiet machines on the market today. Starting with a simple cost effective base unit with many options available, gen-sets can be custom tailored to fit any application from stand-by or contractor sets to deluxe mobile rental units. Some of the standard features this line includes are:

  • Kubota 4 Cycle Water Cooled Engine
  • 1,800 RPM Operation for Long Life and Quiet Performance
  • Single Bearing Generator
  • Brushless Rotating Field Exciter
  • Generator Mounted Solid State Electronic Voltage Regulator
  • Each Unit Machine Shop Tested Under Load to Guarantee Full Performance
  • One Year Factory Warranty on Total Assembly
  • Three Year Factory Warranty on Kubota Engine

Standard Equipment

12 volt electric starter
12 volt battery charging alternator
Automatic engine shutdown for low oil
   pressure/high coolant temperature
Fuel filter
Fuel transfer pump
Dry air cleaner
High ambient radiator cooling
Single bearing generator
Brushless exciter
Unit mounted solid state voltage regulator
Muffler S/Loose
Keyswitch starting
Hourmeter
ISO Mounts

Optional Equipment

Block heater
Circuit breaker
Full engine instrument panel
Generator instrument panel
   (Includes: Voltage Meter, Ammeter,& Frequency Meter)
Automatic engine overspeed shutdown
Three phase power (Changes generator size)
Sheet metal enclosure
Brushless exciter
Automatic start/stop controller
Automatic transfer switch
Skid Mounted
Battery&cables
Fuel tank
On or Off-Road trailers
Heavy duty steel frame

Specifications

Model # # of Cyl. Power kW Engine Model Length Width Height Weight (lbs.)
RCI3-5.0 3 5.0 D-722 38" 20" 28" 475
RCI3-7.0 3 7.0 D-905-BG 40" 20" 28" 510
RCI3-8.5 3 8.5 D-1005-BG 40" 20" 29" 510
RCI4-10.5 4 10.5 V-1305-BG 43" 20" 29" 630
RCI4-12.5 4 12.5 V-1505-BG 43" 20" 29" 630
RCI4-16.0 4 16.0 V-1902-BG 48" 25" 34" 820
RCI4-21.0 4 21.0 V-2203-BG 50" 25" 34" 875

Kubota Specifications (PDF)

Call us for a quote on a unit built for your needs.
