STACKABLE LED TOWERS
Next
Generation Power Engineering started designing its stackable
LED light towers over 4 years ago, retro fitting an old light
tower with the Next Gen 3.5 Kw Gen-Set and LED lights. The
patented ultra compact water cooled Kubota single cyl. package
was perfect for the low power needs of an LED tower. Thousands
of these machines have been used for 20+ years in everything
from the bilges of boats to the frame rails of semi trucks,
many with 20,000 hrs on the clock.
Many
prototype and pre-production machines were displayed at rental
and equipment shows throughout North America over the last 3
years. Based on the input of hundreds of industry
professionals and years of testing, Next Gen has built one of
the most versatile mobile light towers on the market. What was
deemed impossible now exists, a light tower that can go 200+
hrs on a tank of fuel, has full fuel containment, 200,000

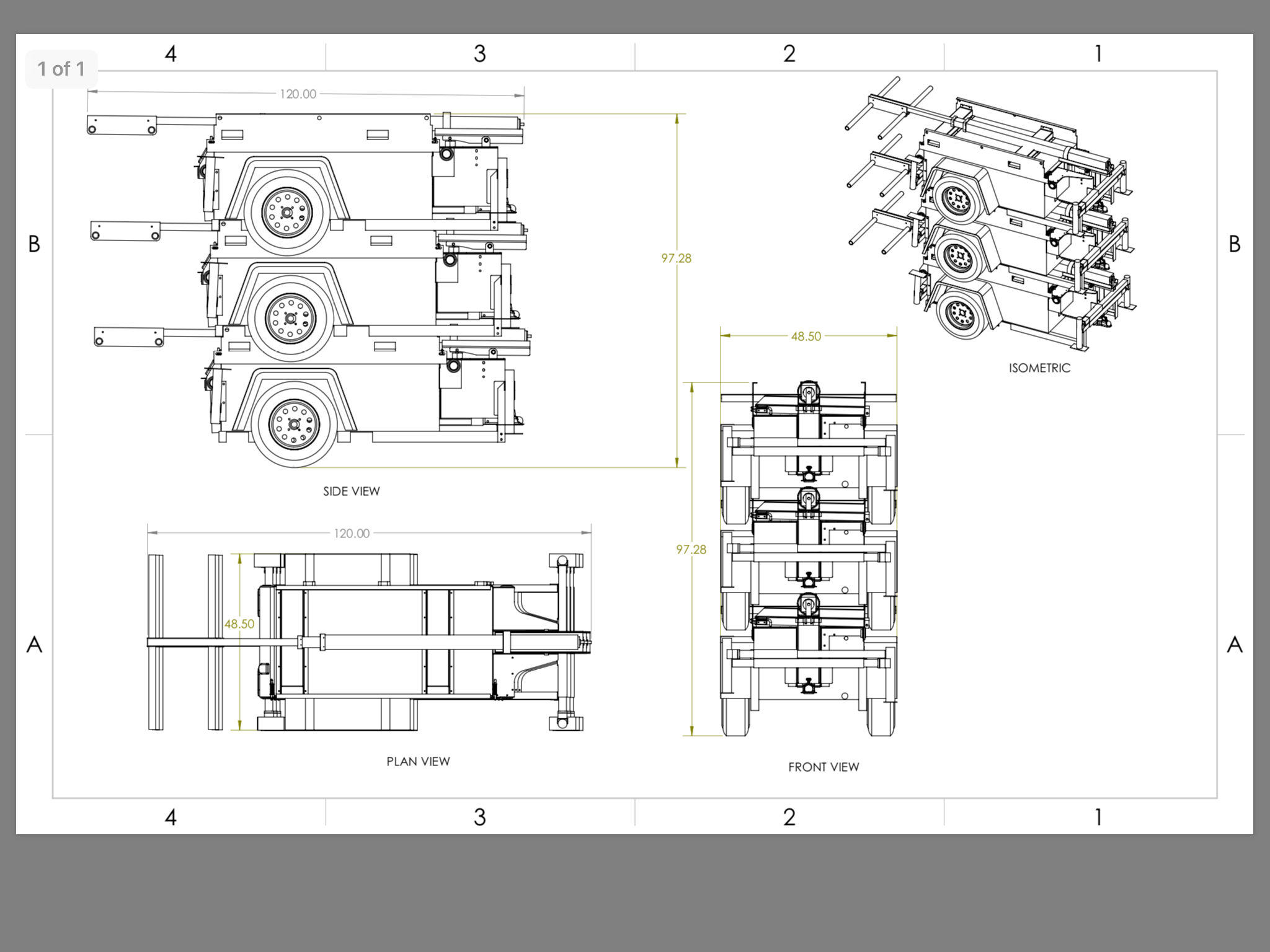

lumens of LED light, and best of all 30+ units can be stacked
on a flat bed trailer!
Next Gen
is pleased to announce that we have partnered with a 100+ year
old equipment manufacturer company that is well known to the
rental industry. Combining their talents and resources final
design changes are being made this year with production
anticipated early 2018.
To
arrange a demonstration of this remarkable new product please:
Email:
sales@nextgenerationpower.com
or Call
Gino Kennedy, President of Next Generation Power Engineering
Inc at 904-607-3456.
Early
production deliveries will be given to those who issue
conditional purchase orders first.
Next Gen

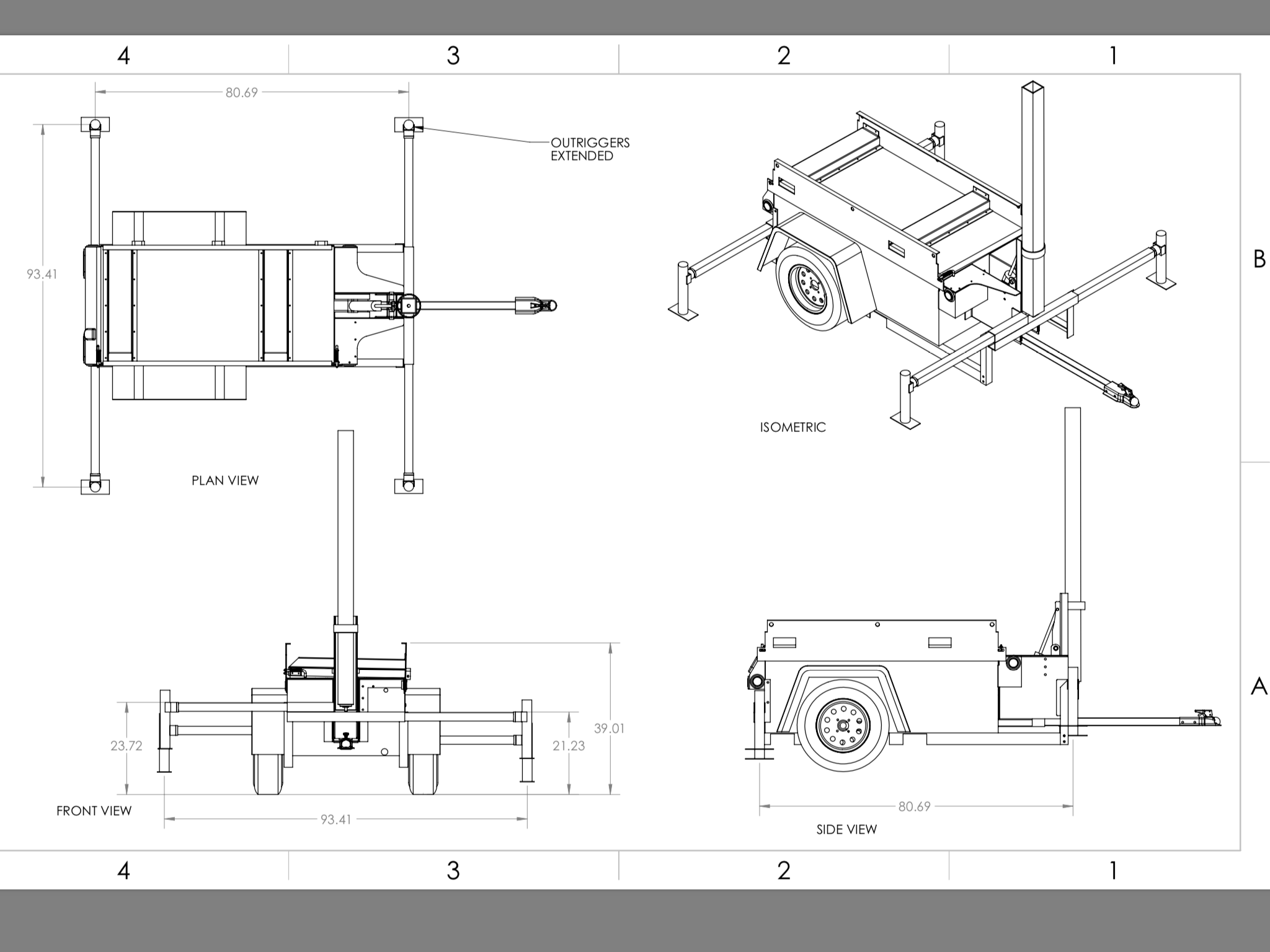

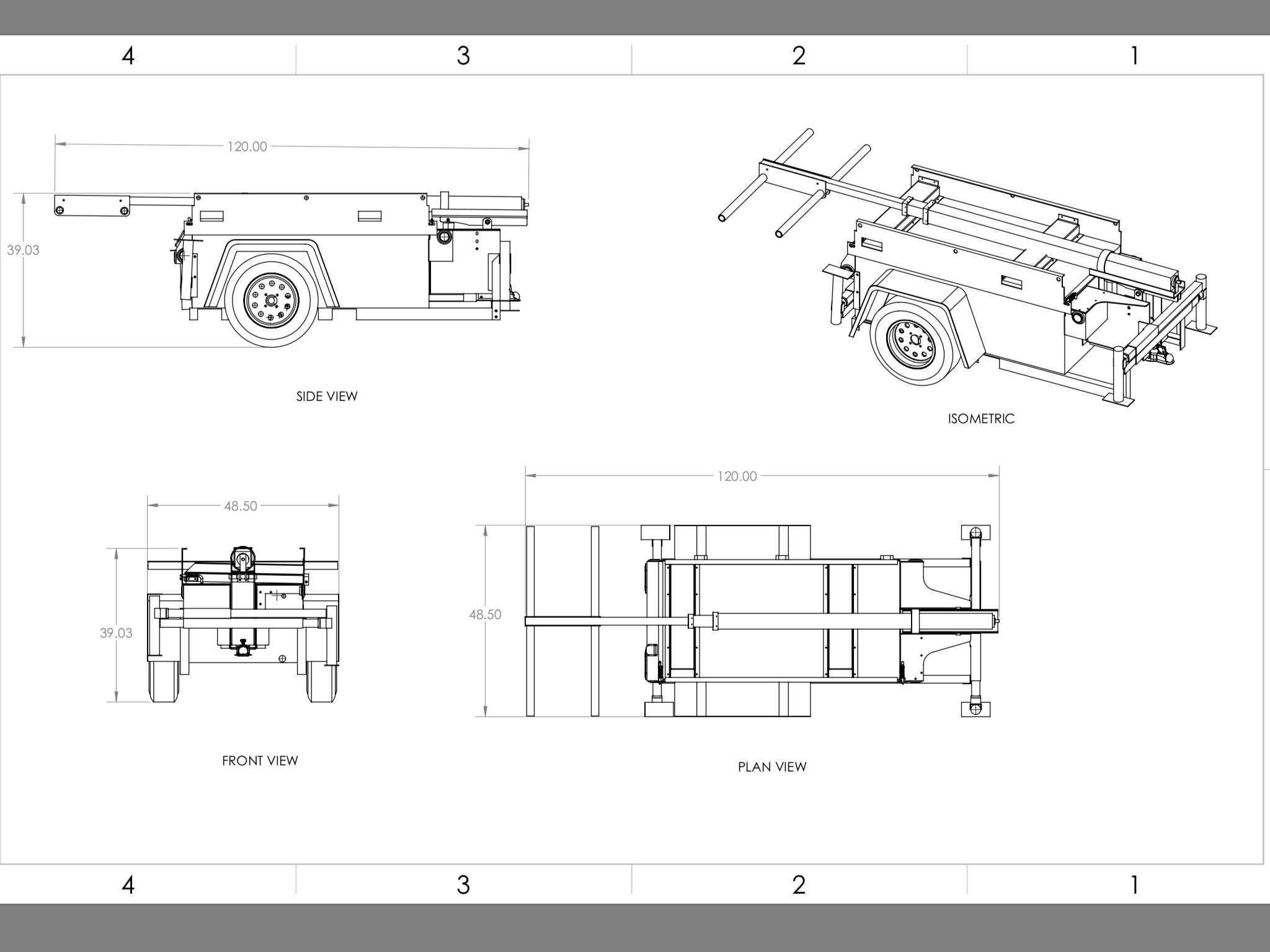

Stackable LED Tower Spec Sheet:
|
Kubota Engine Model |
EA330 |
|
Eng Rated Power kW |
6.9 |
|
Engine Speed |
2800RPM |
|
Engine Cooling |
Liquid |
|
Projected or Change Interval |
500 hrs. |
|
Generator Manufacturer |
Sincro |
|
Generator |
2 pole Copper |
|
Useable Power (kW) |
3.5 |
|
Frequency`` |
60Hz |
|
Aux power (kW) |
1.8 |
|
Aux Power protection |
GFCI |
|
Light Power Consumption (Wattage) |
4 X 400 |
|
Light Output (Lumens) |
200000 |
|
Rated Life of LED lights hrs. |
54000 |
|
L90 (means time to 90% of original light output) |
46000 |
|
Runtime (hrs) |
Approx. 200 hrs |
|
Fuel consumption gal/hr |
.18 |
|
Fuel Tank Capacity |
35 gal ( 133 L) |
|
Spill Containment |
110% |
|
Sound Power @ 7M |
65 |
|
Sized |
125"X 48"X 30" |
|
Transportation |
30 / truck load |
|
Tower Height |
25 feet |
|
Rotation |
360 |
|
Maximum Wind Speed |
60 mph |
|
Tire Size |
180/80R13 |
|
Chassis Construction |
All Steel |
|
|
|
|
